2000 Mk 1

Product Matrix All 2000 Mk 1 Parts

UPRATED REAR UJ HUB

£450 (Each)

For Triumph Independent Rear Suspension (IRS)
Fitted to TR4 IRS, TR5, TR6, STAG, INNSBRUCK & TVR ‘M’ Series

  • The problems with these units are widely known and acknowledged.
  • They were fine when they were new but now they are regarded as a ‘pain’!
  • The need for specialist tools or big hydraulic presses to dissemble.
  • That they are very hard to build and maintain the bearing end float.
  • The flange becomes thinner as they have to be skimmed due to distortion.
  • The Yoke UJ diameters become bigger the more they are dissembled and reassembled.
  • In addition the flanges are known to crack and fail.
  • And the holding thread to the shaft shears.

THE  REDESIGNED,  MADE FROM NEW COMPONENTS,  TRIUMPH REAR HUB UNITS  SOLVE THESE PROBLEMS AND PROVIDE IMPORTANT UPGRADES.

  • Splined shaft and flange construction does not need ‘big’ pullers to separate.
  • Bearings are solidly spaced using shim washers so do not go out of adjustment.
  • Wear compensation is easily accomplished with DIY tools.
  • Because of this the flanges are not distorted so do not need skimming.
  • And driveshaft joints do not need to be disassembled so often.
  • Thread to shaft diameter is increased by 85%.
  • Flange design has increased diameters and radii to stop cracking and failure.
  • Bearing sizes are increased and bearing design has been validated by Timken UK.
  • Only Top quality materials, bearings and seals are used.
  • No Cheap Far East bits!

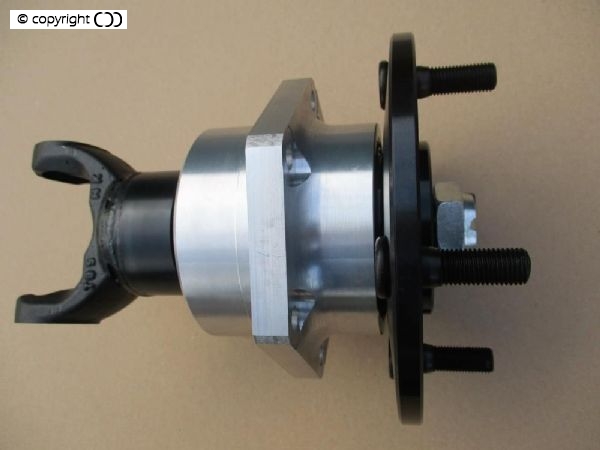

Rear UJ Hub assembled

Rear UJ Hub assembled

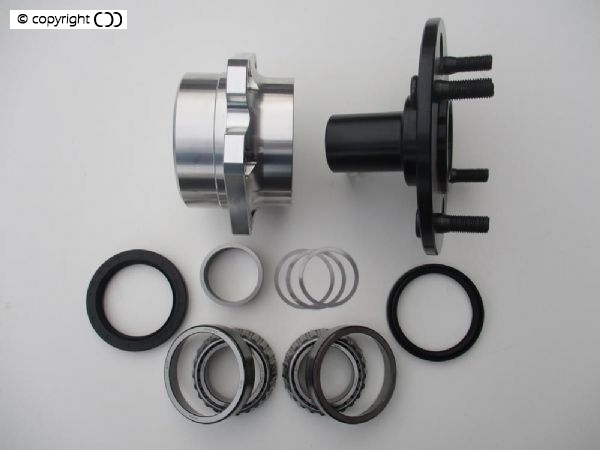

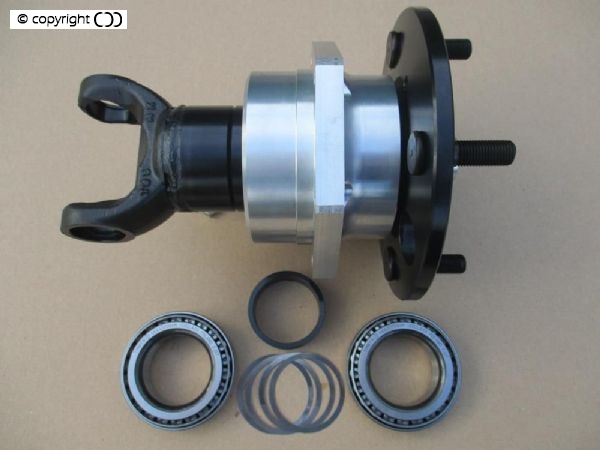

Hub Components with UJ shaft

Hub Components with UJ shaft

Rear UJ hubs

Rear UJ hubs

RearUJ hubs

RearUJ hubs
